MASTER TRACING



To trace a container which has not been itemized (No House Manifest processed), go to MAIN NAVIGATION > MASTER DELIVERY ORDER

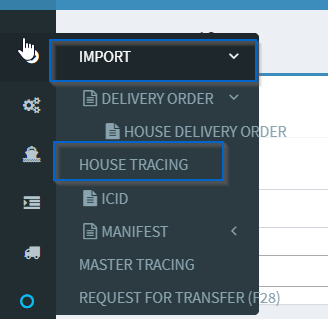

Figure 1 - Accessing MASTER TRACING



The following page will appear.

When user clicks on menu MASTER TRACING, the following screen will appear :

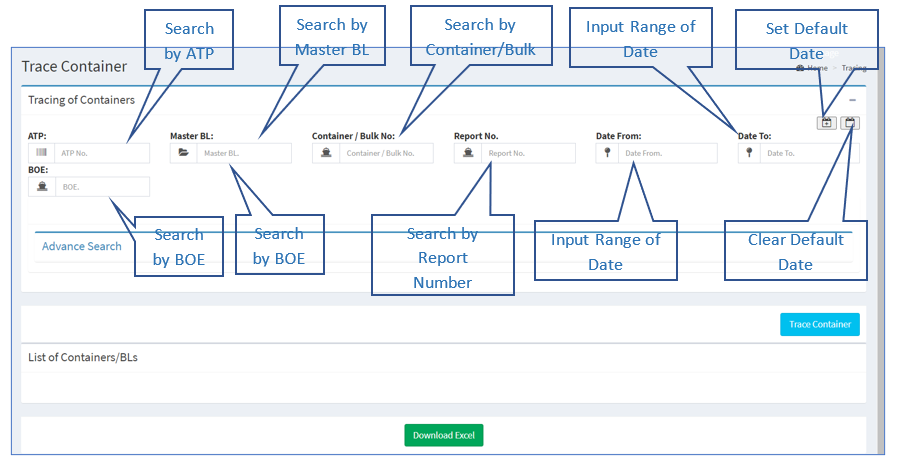

    Figure 2 - MASTER TRACING – Search Options















Example of MASTER TRACING using container number as search criteria :

As per below example, only the container number has been input in the search criteria.

  • System will display all records pertaining to the container input in the search criteria

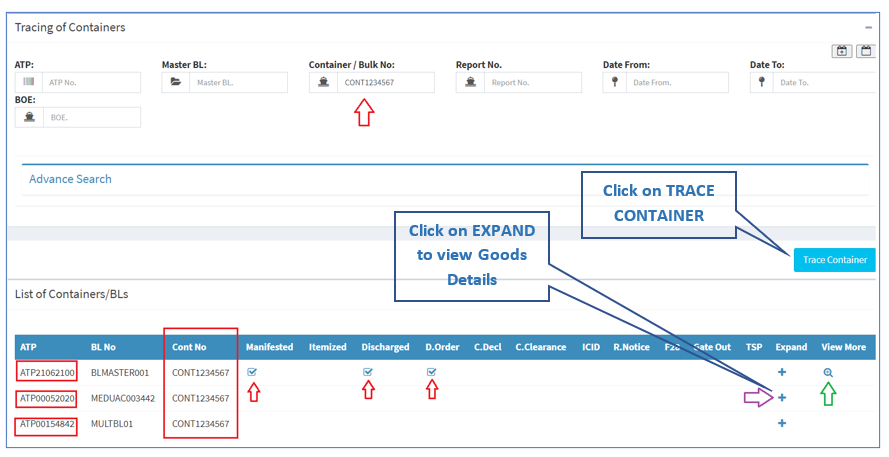

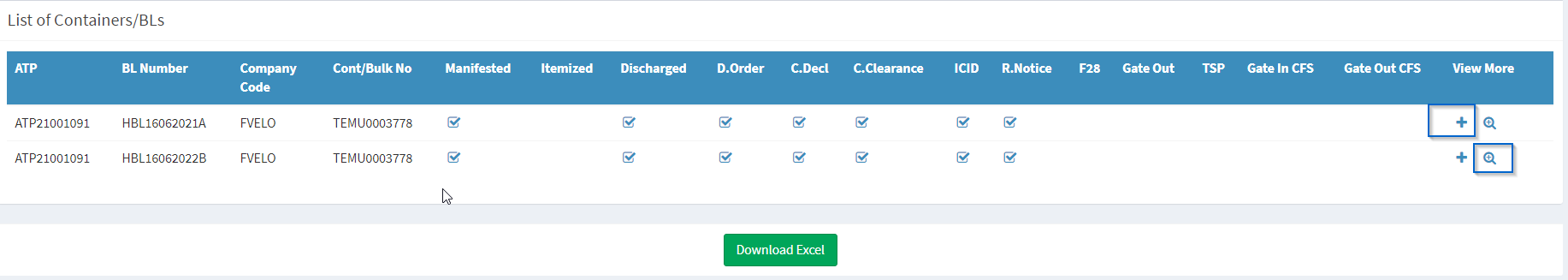

Figure 3 - MASTER TRACING Example

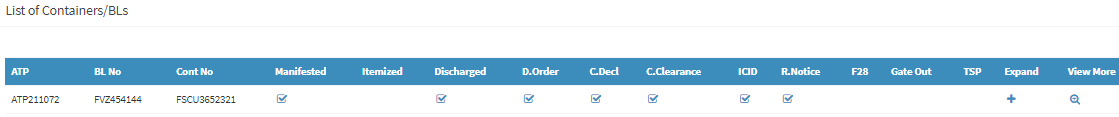

 Description of container status available on MASTER TRACING screen :

COLUMN NAME

DESCRIPTION

ATP

ATP number

BL No

Bill of Lading Number (BL)

Container / Bulk No

Container/Bulk Number

Manifested

Master Manifest sent and approved by Customs

Itemized

House Manifest created

Discharged

Container discharged from vessel

D.Order

Master Delivery Order issued by shipping line

C.Decl

Bill of Entry (BOE) processed at customs - Pending approval

C.Clearance

Bill of Entry (BOE) approved by customs - Delivery Allowed

ICID

Inland Carrier Identification/Haulier info input in system

R.Notice

Release Notice - IRN generated for the container

F28

Container Transfer Declaration (F28) processed and approved

Gate Out

Container Gate-Out at the terminal

TSP

Container used in a Transshipment declaration

Expand

Expand icon to view goods details

View More

View More icon to view all details pertaining to the container





Expanding a container to view Goods information.

When user clicks on Exand, as illustrated below in Figure 4, goods details will be displayed

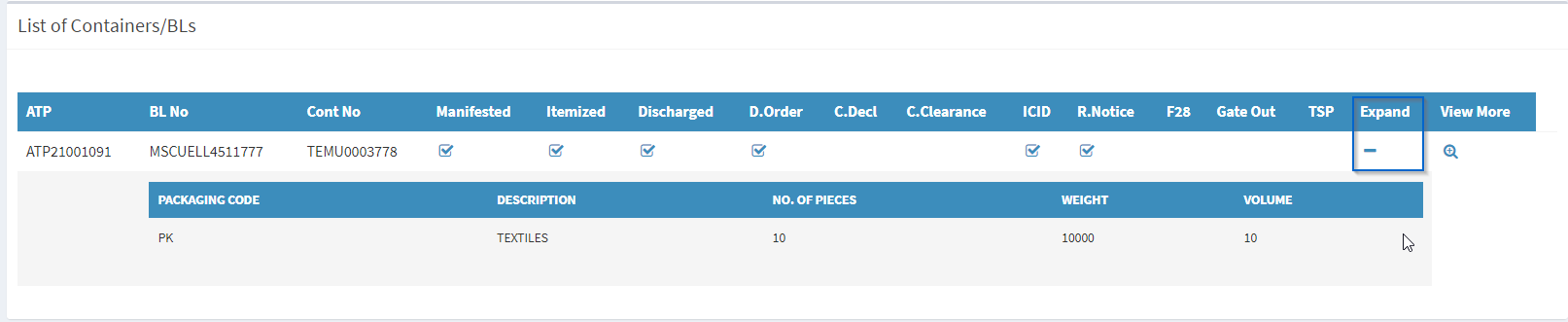

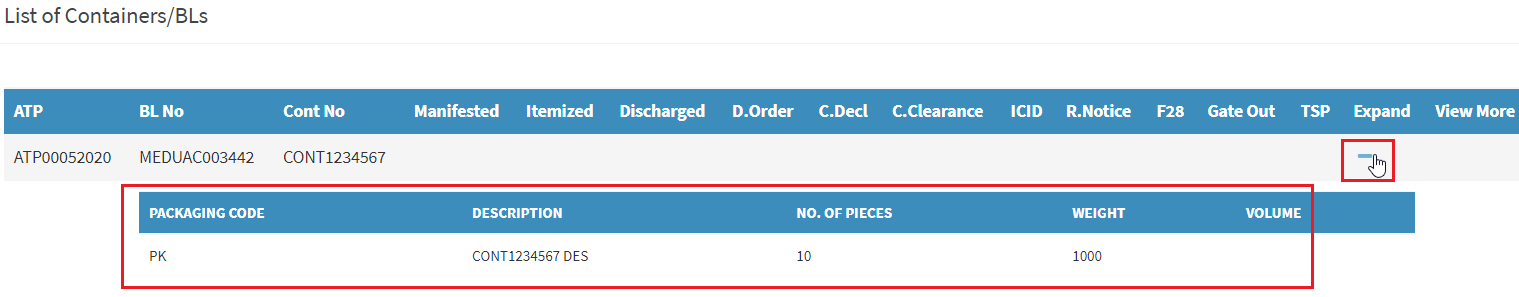

Figure 4 - Expanding a container to view goods details



VIEW MORE option

To view ALL details/transactions for a specific container, user should click on VIEW MORE icon as indicated by the Red arrow in Figure 5 below. A pop-up (MORE INFORMATION) will be displayed on screen – Figure 6 below refers.

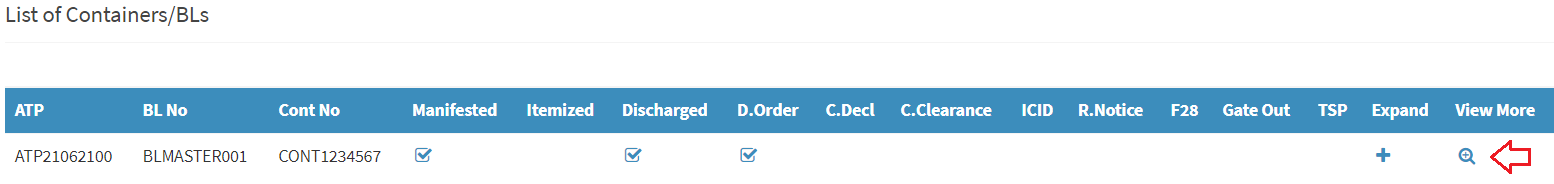

Figure 5 - Icon VIEW MORE

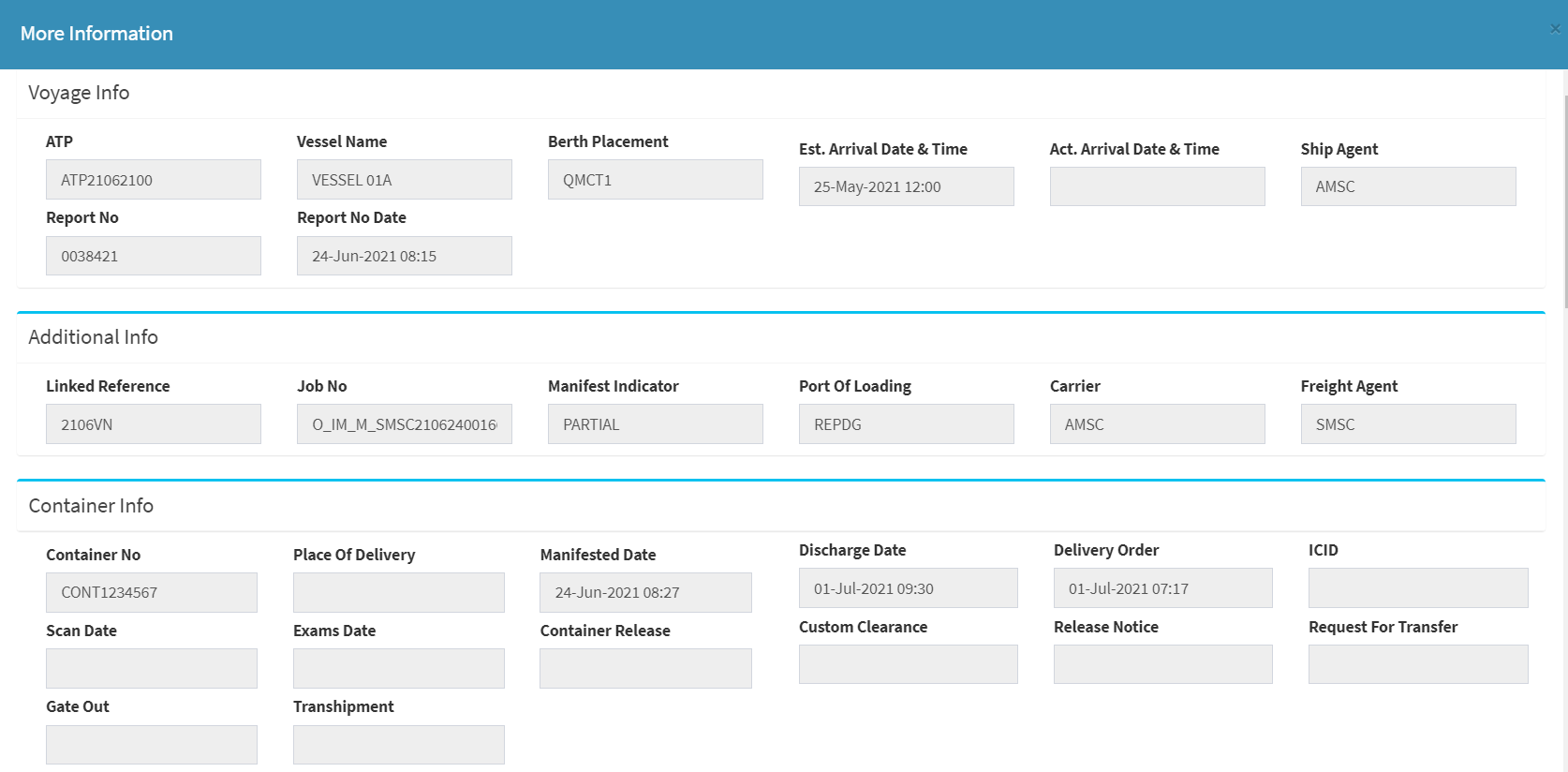

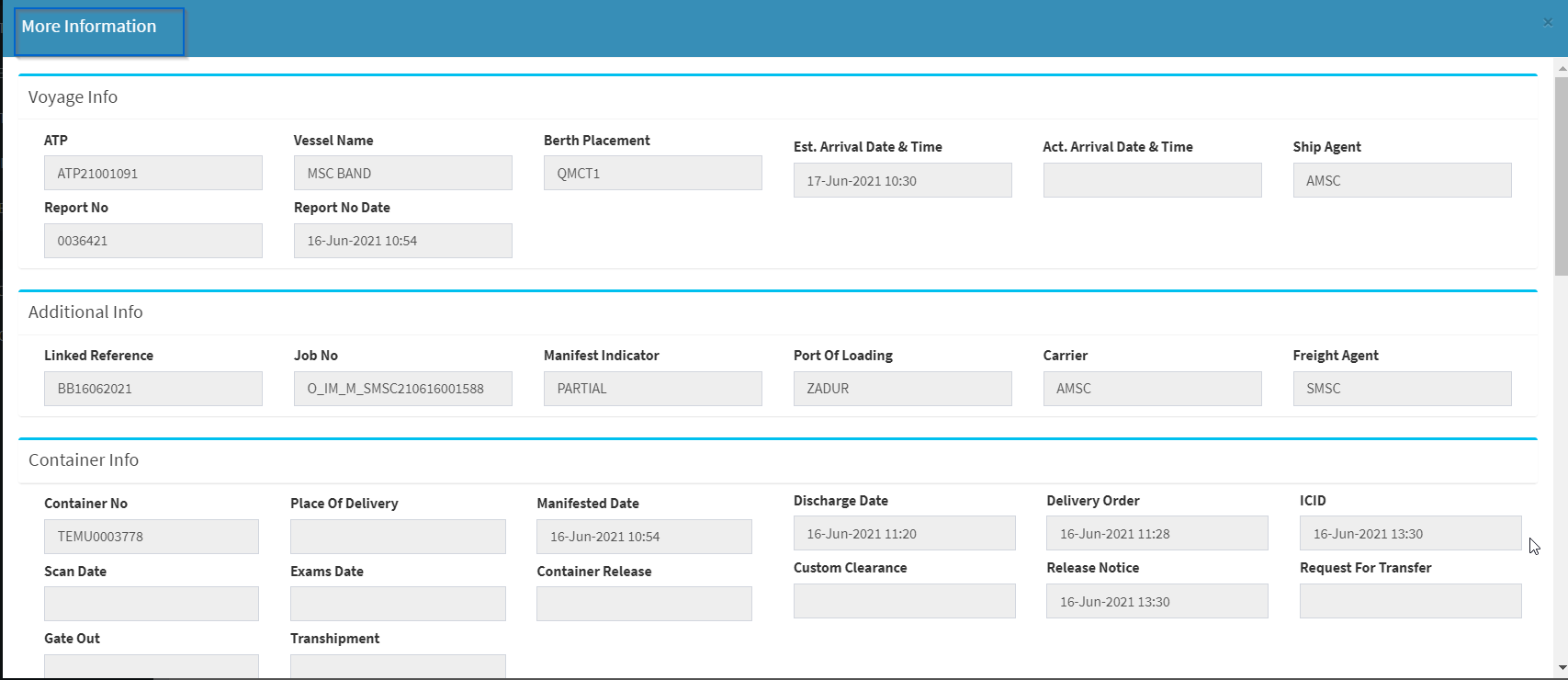

Figure 6 - Pop-up MORE INFORMATION





Please find below Details of information available in VIEW MORE option

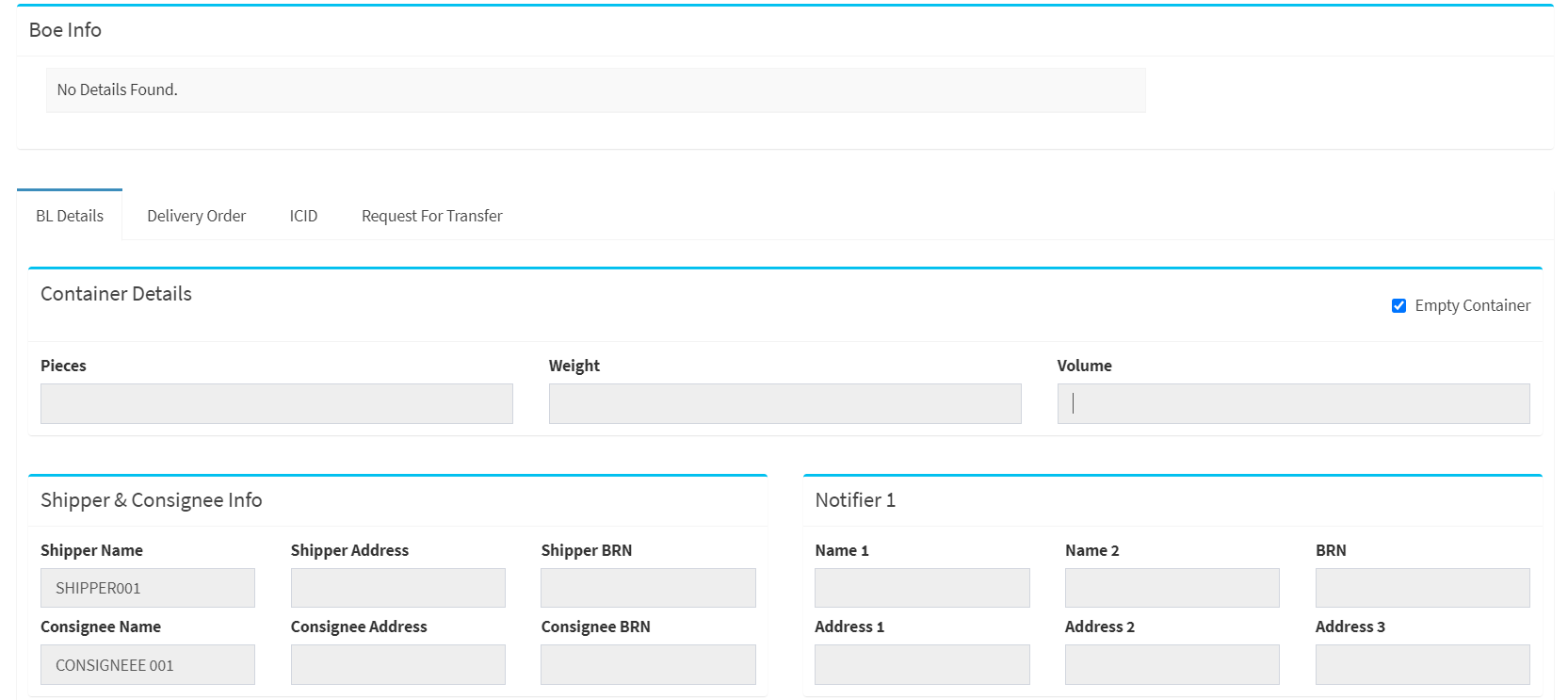

Figure 7 - Details of information available in VIEW MORE pop-up















2. HOUSE TRACING



Steps to proceed with House Tracing

IMPORT

HOUSE TRACING







The option House Tracing allows Freight forwarders to have access to view a particular HBL NO and to view its record.

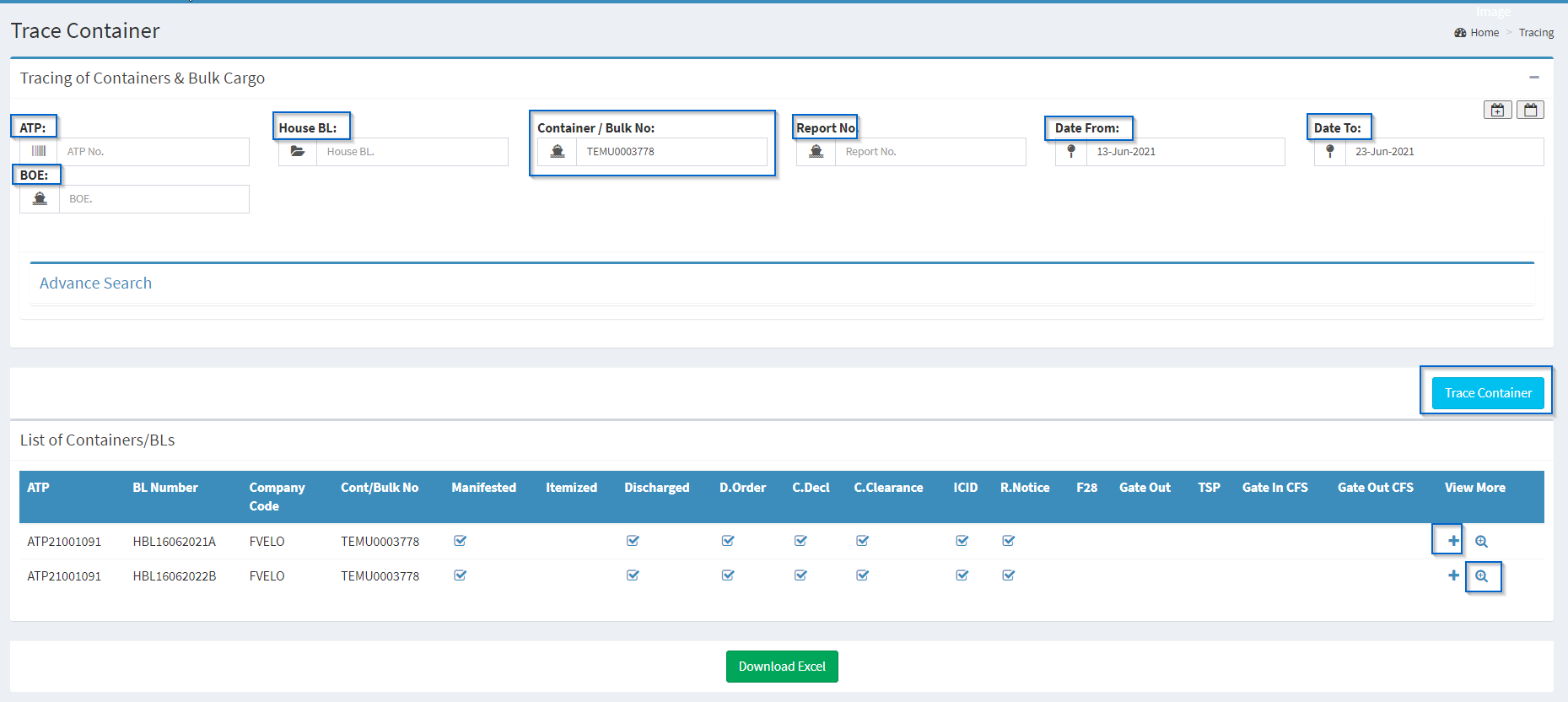

  • Below page will be display and User can proceed House Tracing to verify Import transaction of a particular HBL/Container/ATP





S/N

Detail

Description

1

ATP

An ATP Number is generated upon creation of Vessel Profile (ATPxxxxxxxxx)

2

House BL

Bill of Lading Number (BL)

3

Container No

Container Number

4

Report Number

Report number is generated by CMSII upon approval of Master Manifest

5

Date Approve From - Date Approve To

Date at which House manifest has been approved by customs

6

BOE

Bill of Entry (BOE)











  • After clicking on the button   , the information for House Tracing will be displayed.



  • User Can download file by selecting the

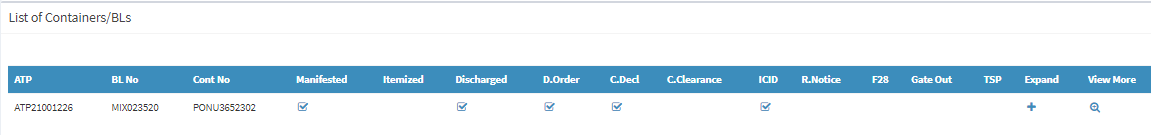

Once User click on  the following page will display, User can view the House manifest data





Expanding a container to view Goods information.

When user clicks on  to Expand icon to view goods details.

VIEW MORE option

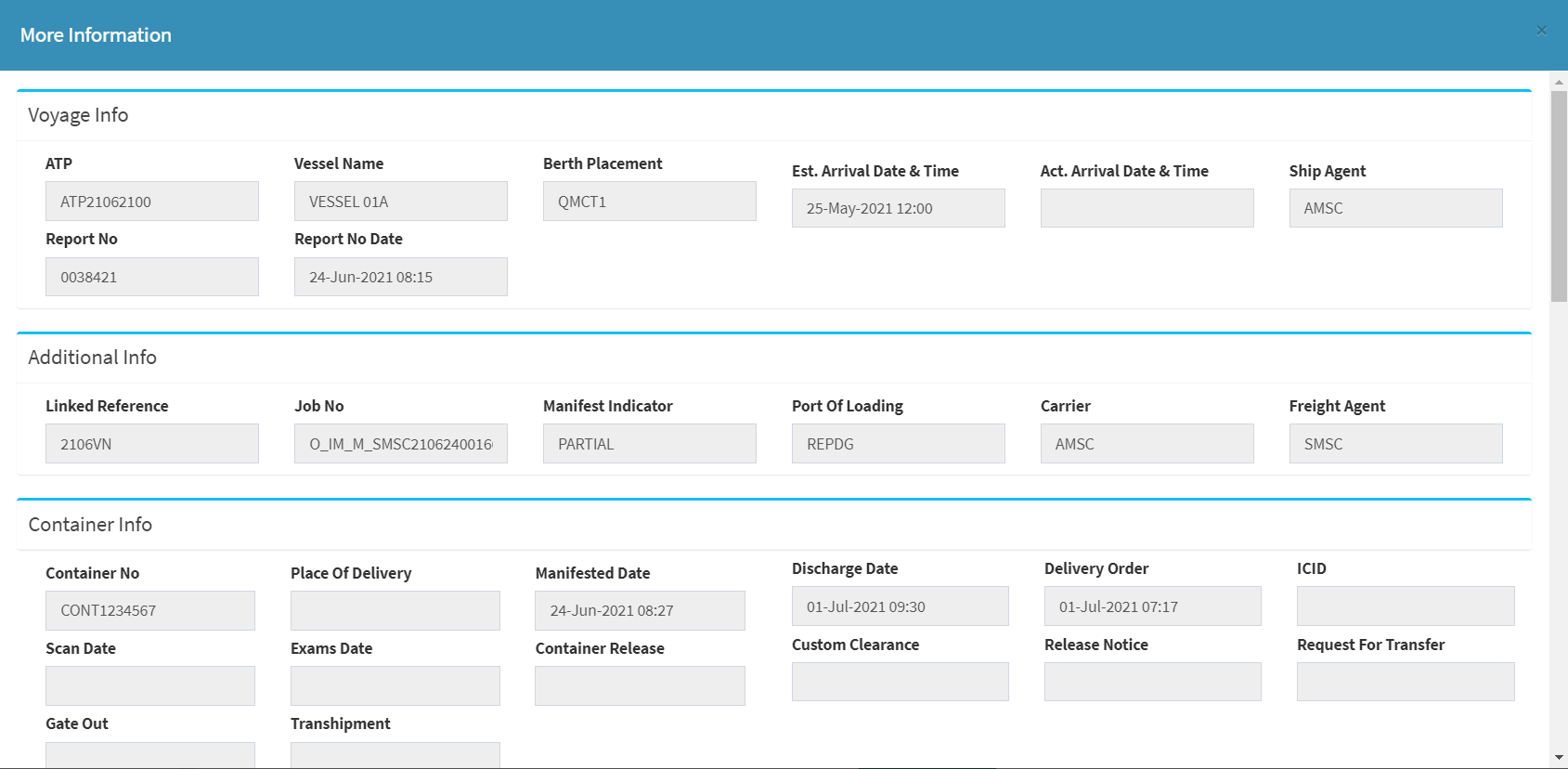

To view ALL details/transactions for a specific container, user should click on VIEW MORE icon  as indicated. A pop-up (MORE INFORMATION) will be displayed on screen with the data.





































3. Conditions for a Temporary Access for Scanning (TAS) to be generated.



  1. Container should be Manifested. [MANIFESTED]
  2. Discharged. [DISCHARGED]
  3. Delivery order should be Issued. [D.ORDER]
  4. BOE should be Validated. [C.DECL]
  5. Scanning required received.
  6. ICID should be created. [ICID]



4. Full Container - Conditions for IRN to be generated.



  1. Container should be Manifested. [MANIFESTED]
  2. Discharged. [DISCHARGED]
  3. Delivery order should be Issued. [D.ORDER]
  4. BOE should be Validated. [C.DECL]
  5. Delivery Allowed should be received. [C.CLEARANCE]
  6. ICID should be created. [ICID]
  7. RENO (Release Notice) should be checked on the tracing screen. [R.NOTICE]



















5. Groupage Cargo - Conditions for the IRN to be generated.



  1. Container Should be Gated In at CFS [GATE IN CFS]
  2. Delivery order to be issued to Broker by FFWD [D.ORDER]
  3. BOE should be Validated [C.DECL]
  4. Delivery allowed / Or Exams received.  [C.CLEARANCE]
  5. ICID should be created. [ICID]
  6. Goods has been Unstuffed. [UNSTUFFED]
  7. RENO (Release notice) checked on Tracing screen. [R.NOTICE]
  8. Input of unstuffing Record by CFS [UNSTUFFED]



6. Request for Transfer (F28)

  1. Container should be Manifested. [MANIFESTED]
  2. Discharged. [DISCHARGED]
  3. Delivery order should be Issued. [D.ORDER]
  4. F28 should be Validated - Update of Transporter Information [F28]
  5. Gate Out at CHCL [GATE OUT]
